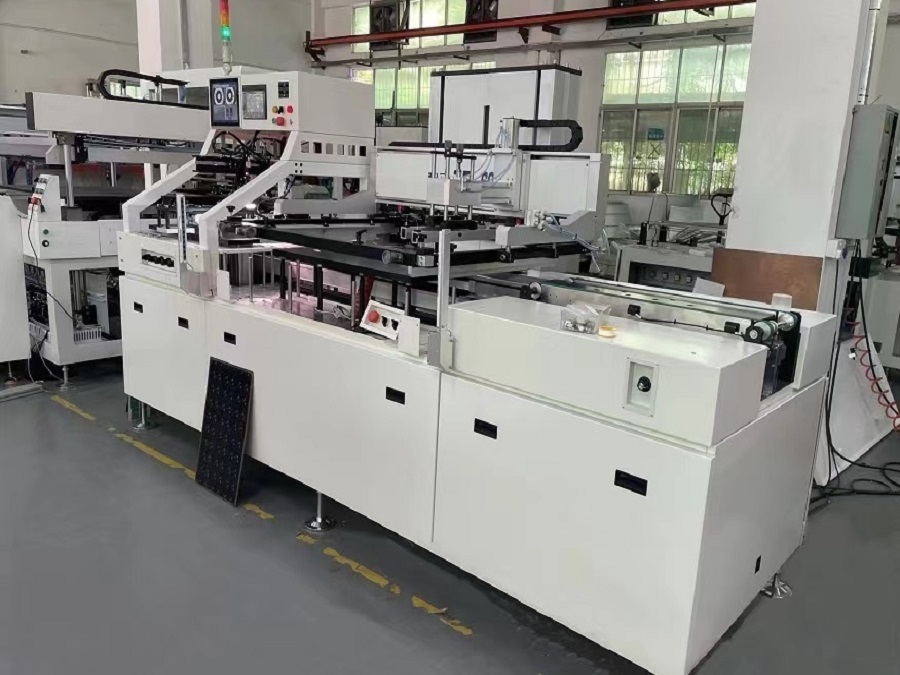

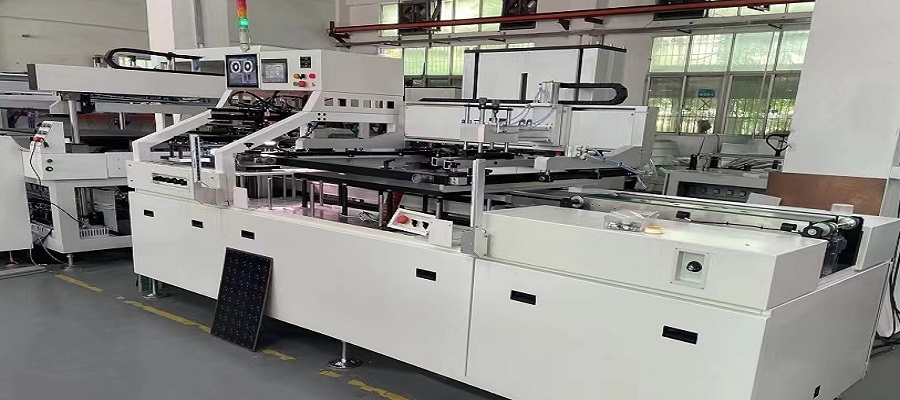

CCD PCB Screen Printing Machine Vertical Type

CCD PCB Screen Printing Machine Vertical Type production video in customer factory for your reference:  https://youtu.be/2sV5_rRa5mg

Application Scope of CCD PCB Screen Printing Machine Vertical Type:

CCD PCB screen printing machine Vertical Type focuses on the production and R&D of high-precision screen printing equipment for PCB materials.

It is widely used on the single-side PCB automatic production line, double-sided PCB solder mask screen printing production line, Double-side PCB plug hole + solder mask screen printing production line, double-side PCB legend printing production line, silver paste, copper paste, carbon paste hole block, resin plug hole technologies,etc. Our machine and technology presents the highest advanced level of the local PCB screen printing industry.

Main features of CCD PCB Screen Printing Machine Vertical Type:

• Working process: Auto loading → CCD positioning → Printing → Auto unloading, fully automatic production line.
• Manual adjustment of six point center positioning structure for feeding pre-positioning, it is easy for adjustment with high speed.

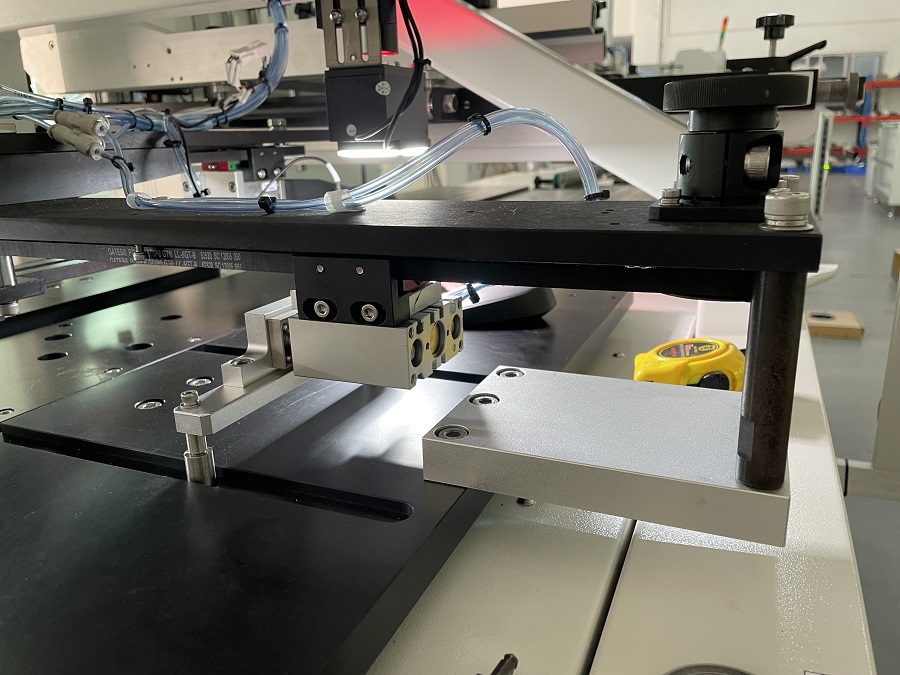

• In CCD positioning system, camera location can be adjusted manually to adapt to different printing specifications; Step motor and ball screw drive the UVW structure alignment platform.
• The printing frame and screen frame adopt the lifting structure driven by frequency conversion motor and chain, with precise linear guide rail guidance, and whole lifting is accurate and stable. Overall manual adjust the screen frame distance, it is convenient and fast.
• Printing is driven by frequency conversion motor, guided by precise linear guide, smooth and stable; printing speed and stroke are adjustable.
• Cylinder driven off-screen and off-screen height is adjustable.
• The printing platform adopts imported aluminum alloy for overall processing, grinding and anode hardening treatment to ensure the accuracy and surface hardness.
• Printing substrates using strong fan + vacuum for adsorption.

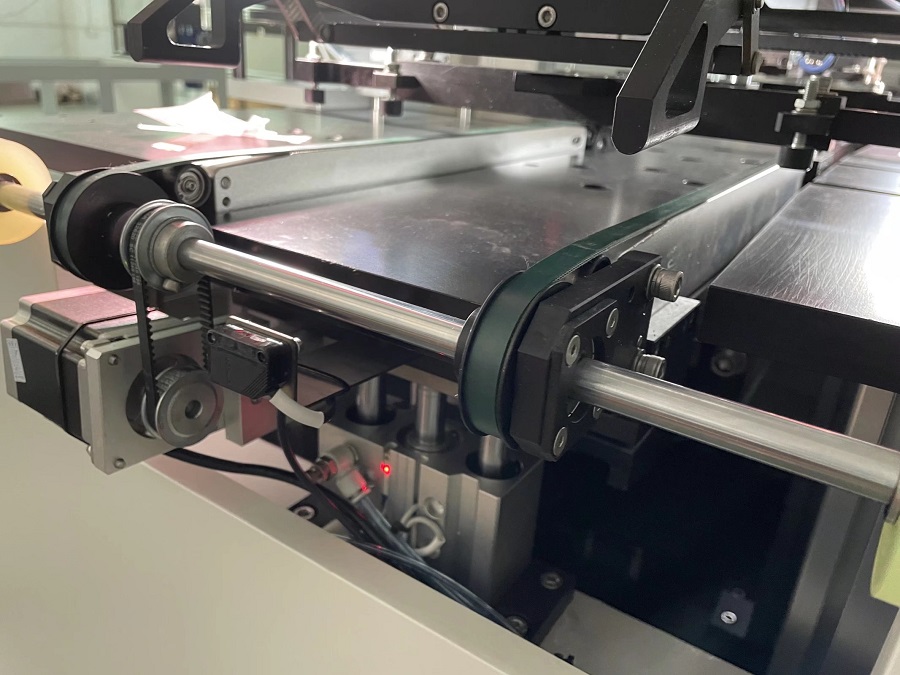

• Servo motor and synchronous belt drive pallet feeding, feeding is fast and accurate.
• HMI operation, can set printing process parameters and has parameter memory function.
• Equipped external shooting grating and automatic error correction, safe reset function, and can well protect the safety of operators and machines.

Operation Process of CCD PCB Screen Printing Machine Vertical Type:

1. Receive incoming signal from loading section
2. Drive belt lifting and rotating
3. Delivery of printing substrates to positioning table
4. Pre-positioning, CCD Visual orientation
5. Substrates table lift up
6. Send the substrates to printing position
7. Frame down for printing
8. After printing, frame lift up
9. Substrates table lift up
10. Unloading

Technical Paramers of CCD PCB Screen Printing Machine Vertical Type:

（We also offer big size models base customer produts needs.）

Machine Configuration of CCD PCB Screen Printing Machine Vertical Type:

** The machine configuration is for reference only as we may use equivalent components if short of supply or integrate of technology,etc.
