CCD PCB Screen Printing Machine 3 Production Line

CCD PCB Screen Printing Machine 3 Production Line

CCD PCB Screen Printing Machine 3 Machine Production Line video in customer factory for your reference: https://youtu.be/HnPaiHO2kmc

Application Scope of CCD PCB Screen Printing Machine 3 Production Line:

CCD PCB screen printing machine – 2 Machine Production line focuses on the multiple process screen printing production and R&D of high-precision screen printing equipment for PCB materials.

CCD PCB screen printing machine – 2 Machine Production line is widely used on multiple scree printing process for double-sided PCB solder mask screen printing production line, Double-side PCB plug hole + solder mask screen printing production line, double-side PCB legend printing production line, silver paste, copper paste, carbon paste hole block, resin plug hole technologies,etc. Our machine and technology presents the highest advanced level of the local PCB screen printing industry.

Main Features of CCD PCB Screen Printing Machine 3 Production Line:

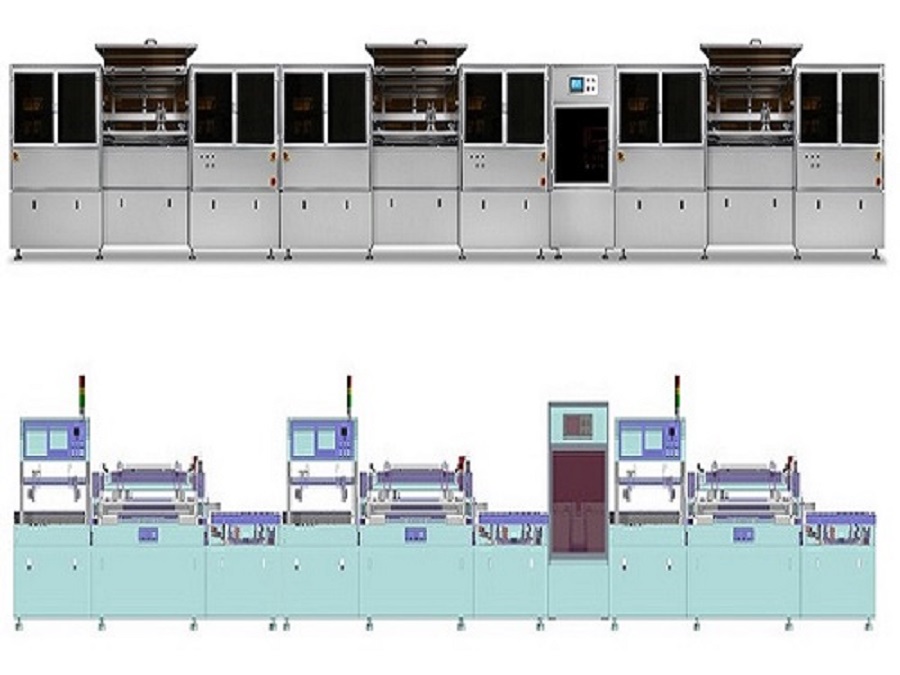

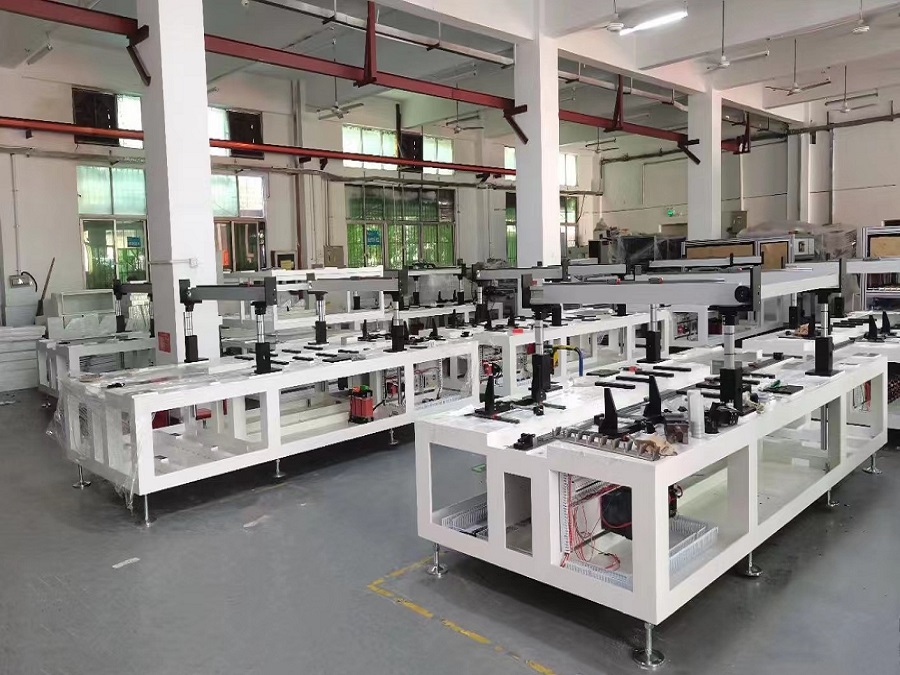

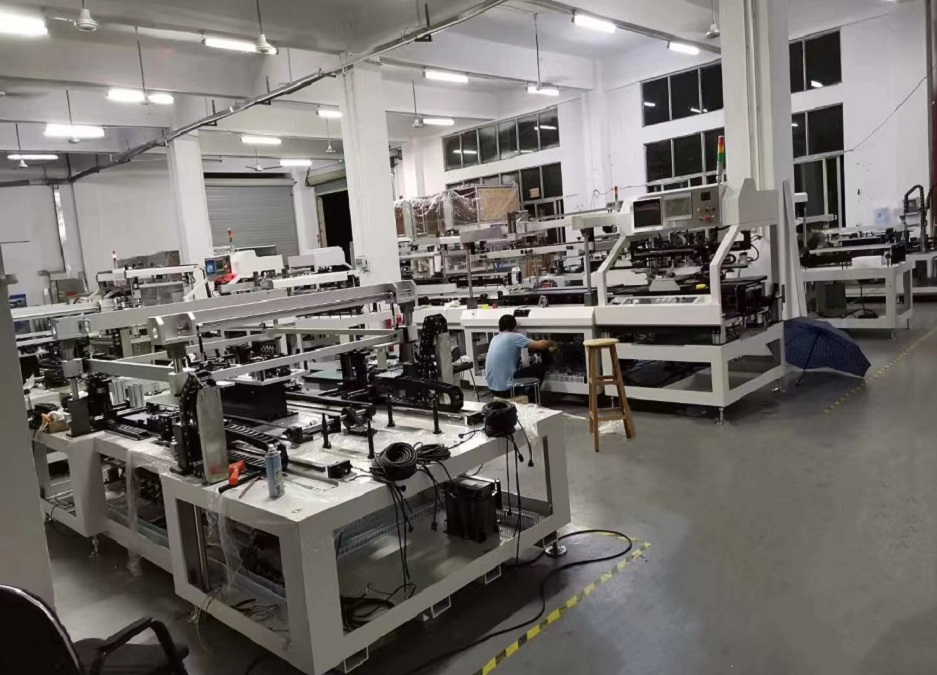

• Whole line is adopting combined modular design with 3 sets of CT series and turnover machine, loading machine and unloading machine. The front and end connection can be designed base the technical and equipments requests.
• CCD positioning system which is high precision with high speed in production. High
• Servo motor driving the four posts vertical lifting structure of printing frame and screen frame.High precision linear guide rail ensures the lifting stable and digital setting of frame distance.
• Servo motor driving screen printing with precision linear guide ensure whole printing smoothly and steadily. Digital setting for printing speed and printing stroke.
• The printing table adopts imported aluminum alloy with overall grinding process and anode hardening treatment to ensure the accuracy and surface hardness
• Two way servo driving off-screen, and digital setting for off-screen height.
• Customer can choose bidirectional displacement or screen bottom printing function.
• Single/Double screen printing mode base customer production needs.
• Taper roller feeding and unloading without touching the printing surface during transmission.
• Pneumatic gripper is used tohold the printing substrate, and the servo motor to drive for left and right convey. The whole operation is quick with high precision.
• HMI operation, digital setting for product specification and process parameter value.
• External opposed grating and automatic error correction, safety reset functioncan well protect the user and machine security.

Control System of CCD PCB Screen Printing Machine 3 Production Line:

• All transmission systems are equipped with top-level control system based on the consideration of “parameter setting”, so as to reduce installation time, facilitate operation, improve production capacity, prevent mistakes and stay, and endure long-term operation, so as to meet the highest requirements of data-based, standardized and safe operation.
• The high-order programmable controller (q-series PLC) is used to interlock the above-mentioned CNC transmission / control systems, and array output and input contacts are reserved for synchronous integration with the front and rear section connecting equipment. The operation interface adopts touch panel man-machine interface, which provides the convenience of real-time operation and multiple parameter setting. It has 200 groups of memory address of operation mode, which can be easily stored and read by touching the switch. This is another sharp tool to reduce the operation time.

 Safety protection system of CCD PCB Screen Printing Machine 3 Production Line:

• Equipped with other safety protection: error detection interlock circuit, error indication, single key automatic return anti daze circuit, front and rear enhanced safety grating, emergency stop button, warning lamp post, etc., with comprehensive safety protection, personnel touch by mistake and stop immediately.

Automatic Visual positioning system (CCD Visual system) of CCD PCB Screen Printing Machine 3 Production Line:

• CCD visual positioning system uses industrial computer and window version high-order program to drive three-axis servo alignment system, which is fast and accurate. The operation interface adopts color LCD screen + track ball.

 Objective of CCD PCB Screen Printing Machine 3 Production Line:

• The CCD optical magnification is used to enlarge the target image, analyze, compare, and achieve high resolution. With U / V / W servo drive, automatic precise alignment is achieved. The alignment accuracy of CCD can reach ± 5 μ

Technical Paramers of CCD PCB Screen Printing Machine 3 Production Line:

(Take 70CT for example, the production line models can be provided base different product size)
